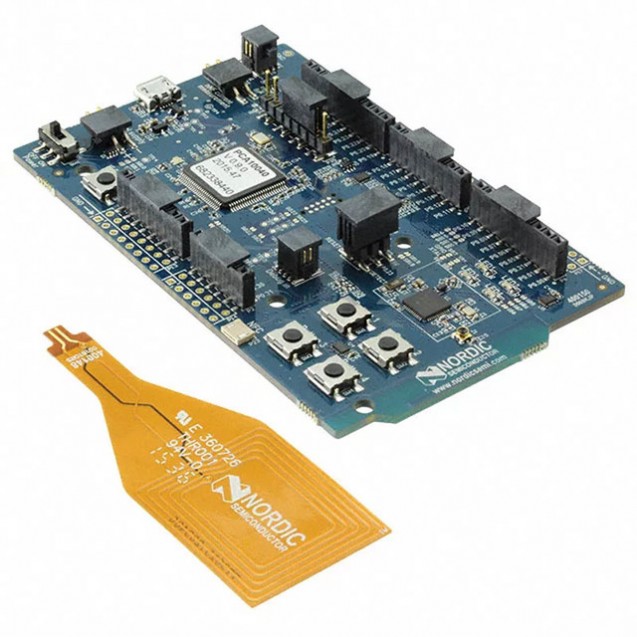

Low energy, ANT and 2.4GHz proprietary applications using the nRF52832 SoC. This kit supports development for the nRF52832 and nRF52810 SoC.

The kit is hardware compatible with the Arduino Uno Revision 3 standard, making it possible to use 3rd-party shields that are compatible to this standard. An NFC antenna can be connected the kit to enable NFC tag functionality. The kit gives access to all I/O and interfaces via connectors and has 4 LEDs and 4 buttons which are user-programmable.

It supports the standard Nordic Software Development Tool-chain using Keil, IAR and GCC. Program/Debug options on the kit is Segger J-Link OB.

• Low cost single board development kit supporting Bluetooth low energy, ANT and 2.4GHz
• Arduino Uno shield compatible
• ARM mbed enabled
• All GPIO and interfaces available at edge connectors
• Segger J-Link OB Program/Debug supported

Kit Content List
1 x nRF52 DK board
1 x 2032 battery
1 x NFC antenna
